Connect to MongoDB Atlas

Connection Modes: Direct

Connection

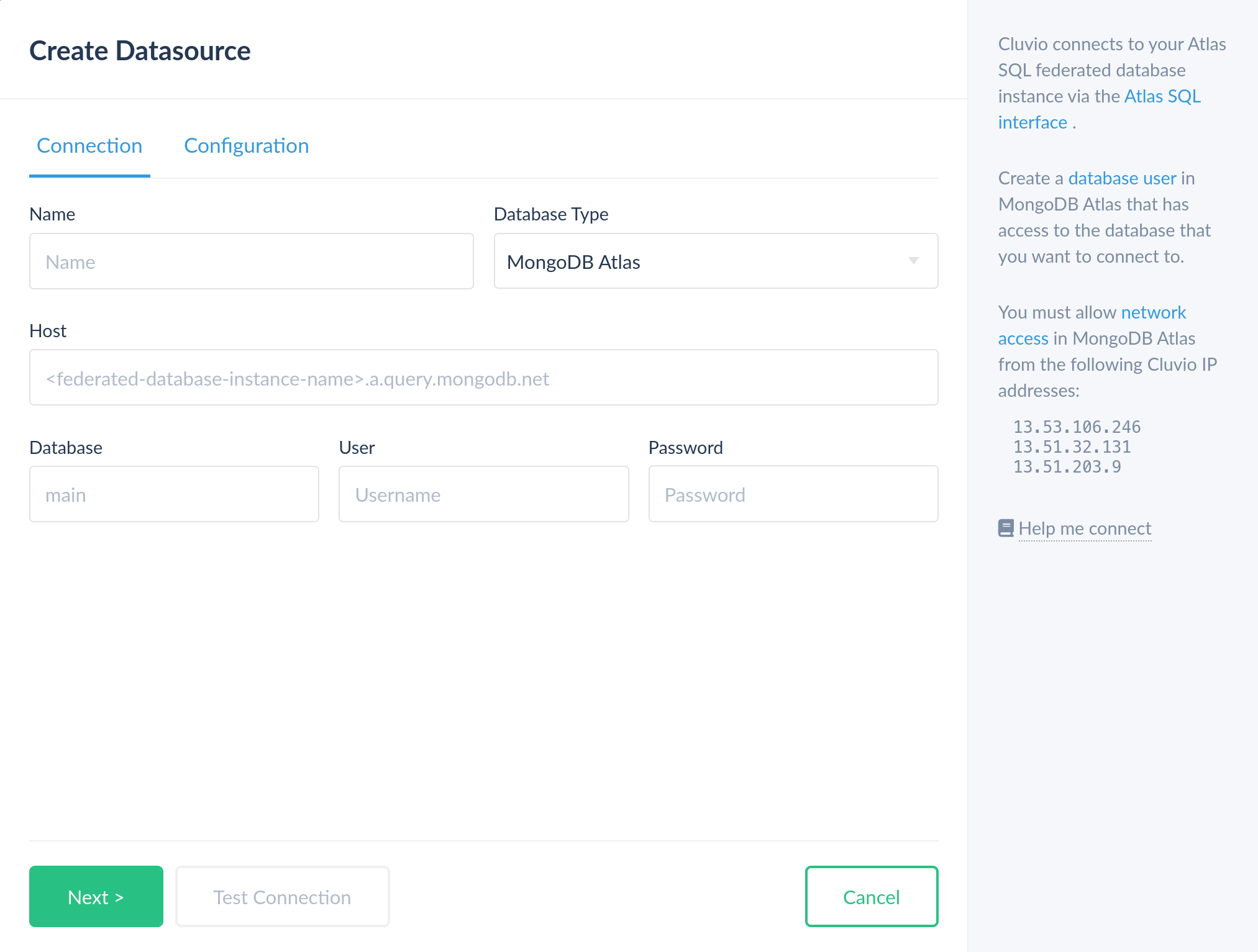

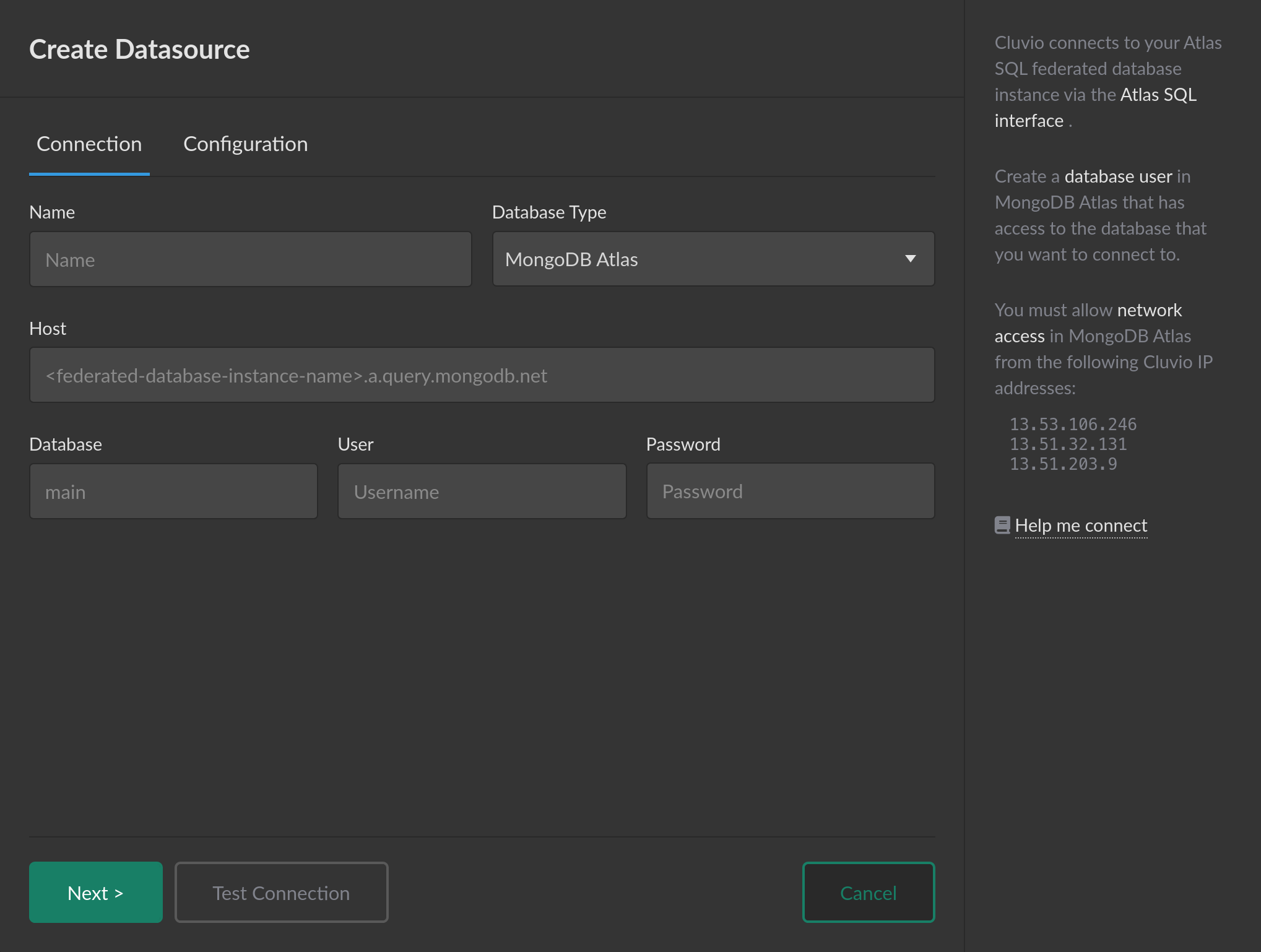

Cluvio supports connecting to MongoDB Atlas SQL federated database instances. Select Add Datasource on the datasources overview page to open the Create Datasource dialog and select MongoDB Atlas as the database type.

The Name is a required human-friendly identifier or description of the datasource in Cluvio. Datasource names need not be unique but we recommend to give each datasource a unique and meaningful name for ease of identification, especially if your organization uses multiple datasources.

The Host is required and must contain the DNS name of your MongoDB Atlas federated database instance.

The Database must contain the name of the database to connect to. Cluvio will fetch schema information for this database in order to populate the almanach in the report editor.

The Username and Password are used by Cluvio to authenticate the connections to your database. The database user must have access to the database specified as the Database. A password is required to secure the connection. Cluvio always uses direct connections with verified SSL/TLS to connect to MongoDB Atlas.

When you have entered all the required information, select Test Connection to check that Cluvio can connect to your database. The connection test will report errors if the connection fails. See Troubleshooting for common problems.

Configuration

The Configuration tab of the datasource dialog shows settings that affect the datasource's behavior.

The Data Time Zone defaults to UTC and is the time zone that Cluvio assumes for any timestamps returned from queries that do not contain time zone information. See Data Time Zone for details.

The Maximum number of concurrent query executions control the maximum concurrency that Cluvio allows for the datasource. This setting can be used to control the maximum load on your database. The default is 20.

The toggle Update schema nightly controls whether Cluvio queries your database schema nightly to ensure that the almanach in the report editor has up-to-date information on your database schema. Together with fetching schema information, Cluvio also tries to retrieve approximate row counts in each table. If you disable nightly schema updates, the almanach is only updated when you manually trigger a schema refresh on the datasource from the Cluvio datasources overview. Nightly schema updates are enabled by default.

The toggle Update exact row counts is only available when Update schema nightly is enabled. This setting controls whether Cluvio will determine exact row counts for every table in your database schema. Row counts are shown in the report editor almanach. Determining exact row counts usually involves issuing a COUNT(*) query on each table, which may cause undesirable load on your database. You can disable this setting to avoid these nightly queries. When disabled, the tables in the report editor almanach may not show row count information if the database does not provide approximate row counts.

Troubleshooting

Firewalls

The most common connectivity problems with MongoDB Atlas federated database instances result from firewall configurations. Please make sure that the network access configuration in your MongoDB Atlas account permits inbound connections from Cluvio's static IP addresses.

GROUP BY Syntax

MongoDB Atlas SQL requires the use of aliases when referencing aggregation or other expressions used in a GROUP BY clause also in the SELECT clause which are not simple column names. For example, the following Cluvio query

-- THIS IS INCORRECT!
SELECT
  {released:aggregation}, -- Alias required
  count(*)
FROM
  movies
WHERE
  {released=timerange}
GROUP BY {released:aggregation} -- Alias required
ORDER BY 1 DESC

will produce the error

Field `released` in the `SELECT` clause at the 0 scope level not found.

The correct query looks as follows:

SELECT
  {released:aggregation} AS released,
  count(*)
FROM
  movies
WHERE
  {released=timerange}
GROUP BY released
ORDER BY 1 DESC

Alternatively, in MongoDB Atlas SQL the alias can also be defined in the GROUP BY clause:

-- This works as well.
SELECT
  released,
  count(*)
FROM
  movies
WHERE
  {released=timerange}
GROUP BY {released:aggregation} AS released
ORDER BY 1 DESC

Note that the alias in the GROUP BY clause is not required when the group-by expression is not also referenced in the SELECT clause:

-- This works as well.
SELECT
  count(*)
FROM
  movies
WHERE
  {released=timerange}
GROUP BY {released:aggregation}
ORDER BY 1 DESC
